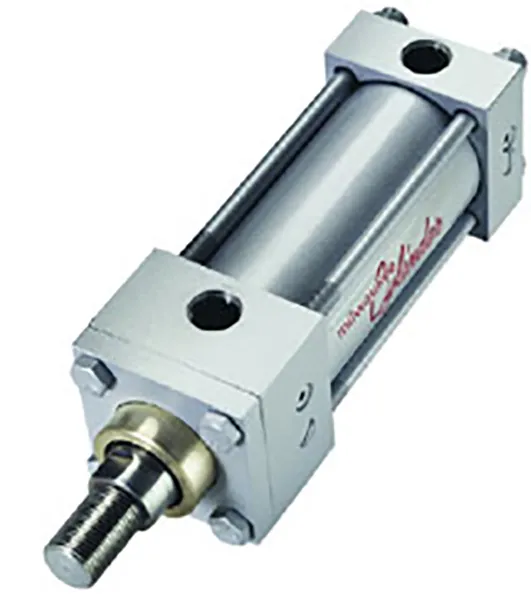

Series LH – Low Pressure Hydraulic Tie Rod Cylinders

Series LH – Low Pressure Hydraulic Tie Rod Cylinders

MILWAUKEE Series “LH” low pressure hydraulic tie rod cylinders are built to perform on the toughest applications. Incorporating a variety of MILWAUKEE “Exclusive” advanced features, proven through the years, these cylinders will provide a long, maintenance-free service life. Advanced engineering combined with quality materials and expert workmanship contribute to the making of a rugged, top quality hydraulic cylinder.

The flange and tie-rod mounts are basically the same, except that the cylinder tie rods are extended and used to mount the cylinder. To prevent misalignment, sagging or possible binding of the cylinder, the free end should be supported. The best use of tie-rods when extending on the blind end is in a thrust load application. When using tie-rods extended on the rod end, the best application is a tension load. Tie rod mounts are suited for many applications, but it should be noted that they are not as rigid as the flange type of mounting.
