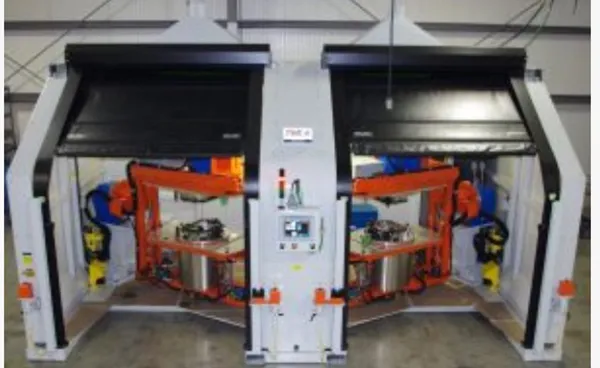

Press and Edge Weld

The Press and Edge welding machine can be purchased as a single cell or double cell.

This machine is ideal for welding stamped muffler bodies.

This machine could operate in conjunction with a component part weighing machine, in a just prior operation.

 Features:

Maximum press force per station – 20,000 lbs (at 80 psi)Two Robot Programming PlatformsEach machine side enclosure equipped with Access doorTwo Tip Change Windows (one per side), accessible at floor level, with wire advance buttonsFluorescent Work Lights with Auxiliary DisconnectEnclosed Top Section for smoke collection and removal cuffReversible Start/Stop Station, and an additional E-Stop within the cell3D Design Using AutoDesk Inventor
