Mee Industries Inc

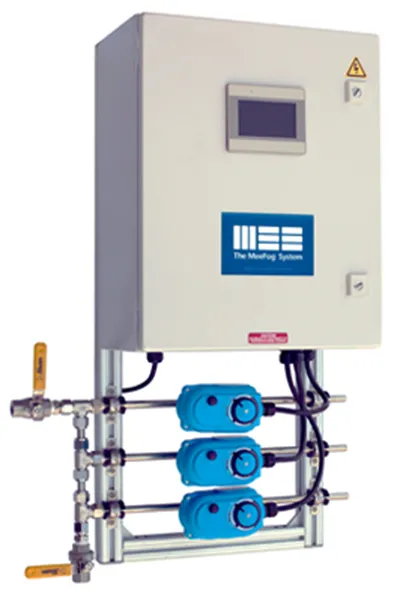

Staged Valve Panel

The valve panel is the humidity control center for the MeeFog™ system. A humidity demand signal is sent from the BMS to the PLC inside the valve panel. The PLC sequences the staging valves in order to control the humidity output inside the AHU

Features:

• Up to 31 stages of fog output control.

• Motorized ball valves are slow closing toeliminate water hammer.

• Color touch-screen interface.

• Automatic sanitary flush cycle wheninactive for a 24 hour period.

• PLC controls delays to prevent overcycling.

• Humidity demand signal (4-20mA or0-10 VDC).

• BACnet option available
