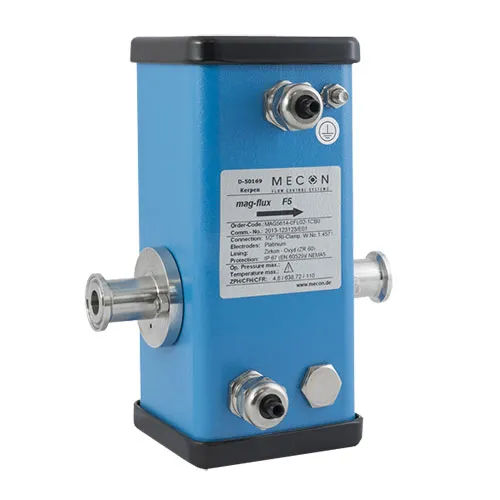

mag-flux F5 flow meter

Area of application:

Typical applications of the mag-flux F5 flow meter are measuring very small quantities and metering chemicals and pharmaceuticals.

The magnetic-inductive sensor is used in the following industries:

• Plant and mechanical engineering

• Chemicals

• Laboratory and medical technology

• Food

• Water and wastewater

• Advantages of the magnetic-inductive flow meter for measuring very small quantities:

• Reliability (long-term stability, service life)

• Minimal maintenance requirements

• Simple commissioning

• High measurement accuracy

• Flexible installation position (however the measuring tube must be completely full at all times)

• Manufacturer’s application expertise

• Short lead times

Special features of the flow meter:

• Measuring tube made of highly corrosion and temperature-resistant zirconium oxide

• Measuring tube internal diameter from 2 mm (0.078")

• Robust and interference-free thanks to sealed steel casing

Very low measuring ranges:

• 0 to 5 l/h (0 to 0.022 USgpm) for d.c. measurement

• 0 to 3 l/h (0 to 0.0132 USgpm) for a.c. measurement

Very low minimum conductivity:

• 10 μS/cm for d.c. measurement

• μS/cm for a.c. measurement

Various process connections:

• Threads: DIN, NPT, BSP

• Flange: DIN, ANSI, JIS

• Clamp

• DIN 11851

• Others on request

Various process connection materials:

• M. No. 1.4571

• Hastelloy C4 M. No. 2.4610

• PVDF with in Hastelloy C4 M. No. 2.4610 earthing ring

• Titanium

• Others on request
