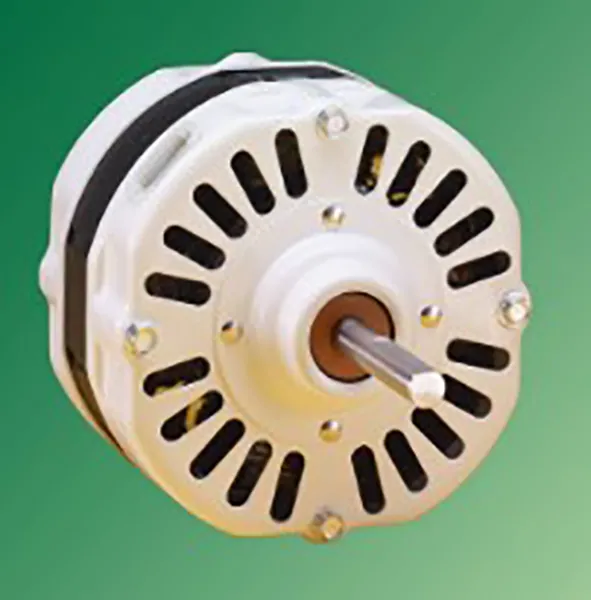

Shaded Four-Pole Motors

• Open Frame or Totally Enclosed Frame
• Unidirectional
• Perfect for fans, humidifiers, compressors, pumps and HVAC equipment.
• 1,500 RPM
• Single or multi-speed
• 100V to 240VAC
• 50 or 60 Hz.
• Sleeve or ball bearings
• Shafts can be ¼, 5/16, 3/8 or ½-inch diameter
• Single or dual shaft
• 1/50th to 1/8th HP
• UL and CSA Recognized
• Class A or B insulation
• One-shot or automatic recycling thermal overload protection
• Dimension A varies from 2 1/4 to 3 1/4 inches.

TYPICAL APPLICATIONS for the shaded four-pole motor include: fans, blowers, humidifiers, dehumidifiers, air purifiers, small appliances, compressors, gearhead drives, pumps, and heating and ventilation equipment.
