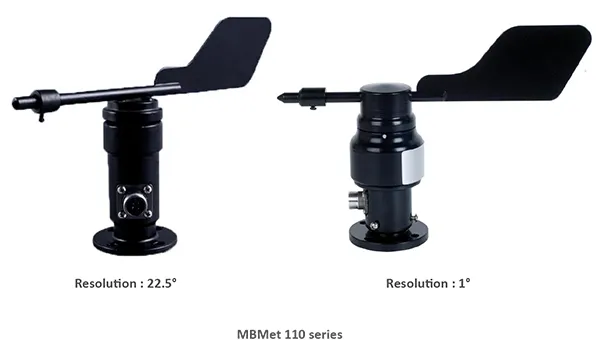

MBMet 110 Series Wind Direction Sensor

MBMet 110 Series Wind Direction Sensor

The MBMet 110 series offer accurate measurement of wind direction in unattended locations. Digital circuits are capable of strong RFI & EMI resistance and automatic temperature compensations are built in. MBMet 110 wind vane measures wind direction from 0 to 360° with a ±3° accuracy. The construction of the sensor reflects long-term reliability and durability, only the highest quality corrosion resistant materials, such as high strength aluminum and stainless steel are used. The sensor has good resistance to sand, dust, salt spray and fungus. Ideal for wind resource assessment studies and applications that requires accuracy, reliability and minimal maintenance.

Data Transfer Variants

• MBMet-110A : 4-20mA Current Output
• MBMet-100B: RS-485 Modbus Output

• MBMet-100C : 0 to 5V Output
• MBMet-100D : 0 to 10V Output

Unique Features & Benefits

• Low starting threshold
• Strong corrosion resistant ability
• Massive all-metal construction

• Double Bearing Design
• Surge Protection design
• Easy Installation

Applications

• Weather Station
• Smart Cities
• Solar and Wind Power Generation

• Marine Vessels
• Airports
• Road Management
