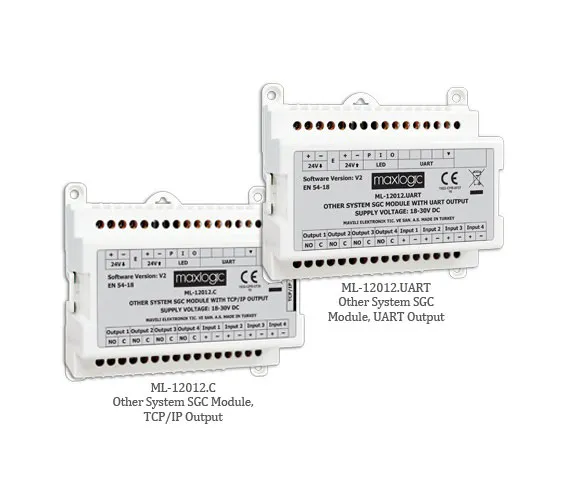

SGC Module
SGC Module is designed to monitor and control other systems (Maxlogic series intelligent addressable systems are excluded).
◗ 4 inputs (“System Fault”, “Alert”, “Fault”, “Fire”) and 4 outputs (“Alarm Silence”, “Reset”, “Alarm”, “Evacuation”) for monitoring and controlling via Supervisor
◗ With UART connection cable for short distance access, with TCP/IP via internet for long distance TCP/IP can be connected to Sprvsr+
◗ Through advanced redundancy structure ensure reliable and continuous communication
◗ Sprvsr+ Android software enables monitoring and control of fire alarm system without the user's need to be at the computer
MODELS
Product Code
Description
ML-12011.KU
Intelligent addressable system SGC module, RS-232 output
ML-12011.KB
Intelligent addressable system SGC module, RS-485 output
ML-12011.C
Intelligent addressable system SGC module, TCP/IP output
ML-12012.UART
Other systems SGC module, UART output
ML-12012.C
Other systems SGC module, TCP/IP output
