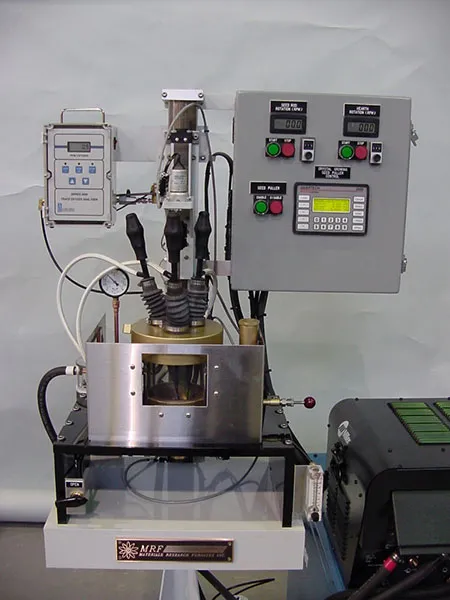

Crystal Growth Arc Melt Furnace TA-200

Crystal Growth Arc Melt Furnace TA-200

Our lowest cost furnace to grow lab-sized crystals with the Czochralski method is our Arc Melt Furnace TA-200 with the Crystal Growth option. This option adds all components used to grow single crystals of semiconductor materials (Silicon, Germanium and Gallium Arsenide), metals, salts and synthetic gemstones.

This furnace uses three electric arcs capable of melting materials above 3500°C. A crystal seed attached to the seed rod then lowers into the 2″ (50 mm) crucible holding the melt. The controls are programmed to pull the growing crystal.

The pulling speed is adjustable and controls accurately as low as 0.001 mm/min. A separate motor is provided to rotate the 3/8” seed rod, the maximum pull height is 7″ (176 mm). The bottom crucible is also available with a rotational motor.

General Specifications

• for crystal growth using Czochralski method
• adjustable pulling speed as low as 0.001mm/min.
• 7″ (178 mm) travel
• 2″ (50mm) crucible
• adjustable seed rod rotation
• Tri-Arc melting furnace for fast homogeneous melts up to 3500°C

Applications

• Crystal growth
• Arc casting
• Powder melting
• Annealing
• Melting point determination
• Metallic buttons
• Creating alloys
• Crucible welding
• Material densification
• High purity melts
