Masibus Manufacturer of 8208-XP Multichannel Temperature Scanner which is the Ex-proof version of model 8208, and is certified for use in Hazardous areas.

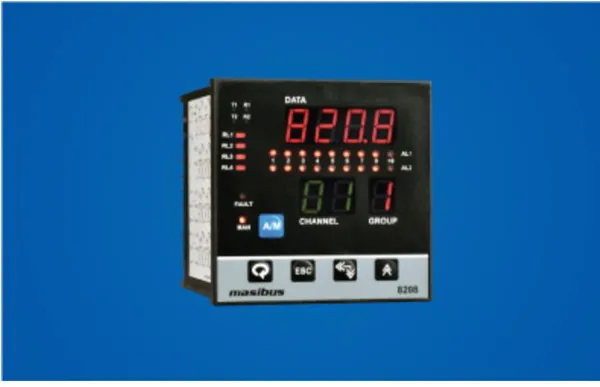

Multichannel Temperature Scanner 8208-XP is the most compact multi-point scanner available in the market; designed with the latest Touch Sense Keys for Flame Proof Enclosure to give full programmability and ease of operation.
Multichannel Temperature Scanner 8208-XP comes in density of 4 or 8 channels; Universal Analog input per channel and has 4 fully programmable relay output for Alarm & Trip purpose. The unit has separate Numeric displays for Channel, Group and PV. All Configuration and Calibration can be done from front panel keypad The 4 relays can be freely mapped as Alarm, Trip or control set point. User has option to program set-points and logic individually or group wise. Channels can be configured up to 4 groups with one relay per group; 2 groups with 2 relays per group or 1 group with 4 relays per group. Two discrete LEDs are provided per channel and one LED per relay for status indication.
Multichannel Temperature Scanner 8208-XP has built-in Isolated RS485 Modbus serial port and provides analog retransmission output with group Max/ Min to further interface with PLC/DAS/DCS/ SCADA.
