Marley Engineered Products

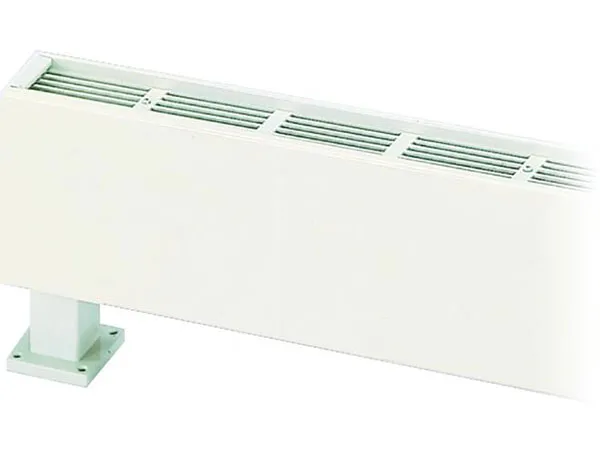

Commercial & Decorative Pedestal - CPH & DPH Series

Commercial & Decorative Pedestal - CPH & DPH Series

• IDEAL SPACES | Institutional and Commercial: Offices; Hallways; Lobbies; Condos; Conference Rooms; Retail Spaces; Terminals; Other Areas Without Wall Mounting Options
• DIMENSIONS | See specifications
• COLORS | White, Beige, Aluminum, Bronze, Black, Charcoal Gray & Custom Colors
• CPH (Commercial) and DPH (Decorative); ideal for primary, secondary or supplemental heat where wall mounting is not viable
• Perfect for under-the-window heat loss and condensation prevention
• Durable front cover constructed of 16-gauge steel (optional 14-gauge available)
• Pedestal-mounted design; bottom inlet - top outlet
• Units may contain 1-3 heating elements that yield a broad range of heating capacity (see specifications)
• Optional 1/4 in. mesh located under the discharge grille to deter insertion of objects and restriction of airflow
• Blend into any décor with 8 standard color options or custom finishes available upon request
• Units can be mounted from wall-to-wall or as discrete units in standard lengths of 28 in. to 10 ft.
• Optional built-in controls include: line voltage thermostat (SPST or DPST); power on/off switch; power relay; or transformer relay (see specifications)
• Right- or left-hand entry/wiring flexibility with identical pre-wired junction boxes at either end
• Built-in wire way with factory-installed wiring rated 35 amps for CPH05 and 45 amps for CPH07
• Easy connection of supply wiring from bottom, rear or end, as well as multiple wiring of adjacent heaters from one entry point
• For service, all internal parts are accessible by removing cover
