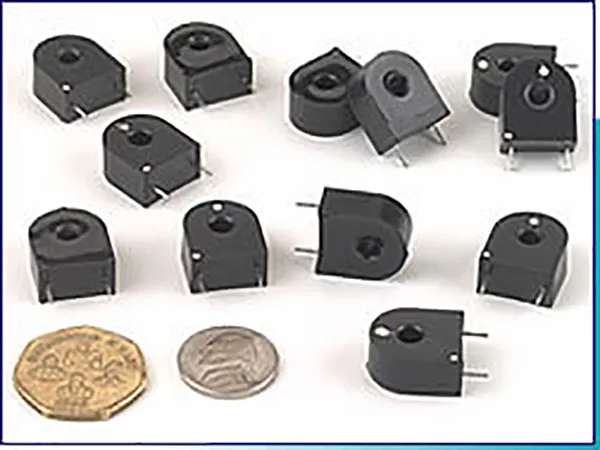

MN205 – Current Sense Transformers

MN205 – Current Sense Transformers

Features

• From 0.1 to 5 Amps @ 50 Hz
• Ultra sensitive for low current measurement.
• UL and VDE recognized class B material.
• Other current rating and specifications available.
• From 50 Hz to 400 Hz.

Specifications

• Secondary 2000 turns.
• Winding DCR: 150 Ohms max.
• Suggested burden resistor: 100 Ohms.
• AC output voltage proportional to AC current input.
• Output at 100 Ohms: 50 mV/Amp.
• Various ranges of output are achievable by using different burden resistors.
