Mandik, a.s.

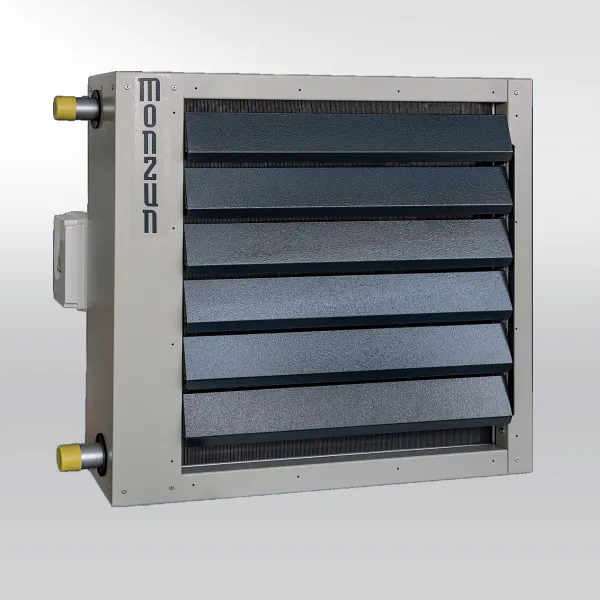

MONZUN-TE Hot water heater unit

MONZUN-TE

Hot water heater unit

MONZUN - TE – Hot water heat conducting unit is intended for ecological heating and ventilation of halls and rooms that are air heated, where the heating medium is hot water. The unit can be fitted with optional accessories. When using the mixing chamber, the unit can be used for ventilation as well.

Characteristics

• Available in three sizes, from single to four row heating coils

• On-wall or under-ceiling mounting

• Connection of mixing chamber and other accessories possible

• Heat output from 9,6 to 88,7 kW with air flow volume from 1 500 m3/h to 7 800 m3/hWater

• Heated: water - tmax = 100°C, pmax = 1,4 MPa
