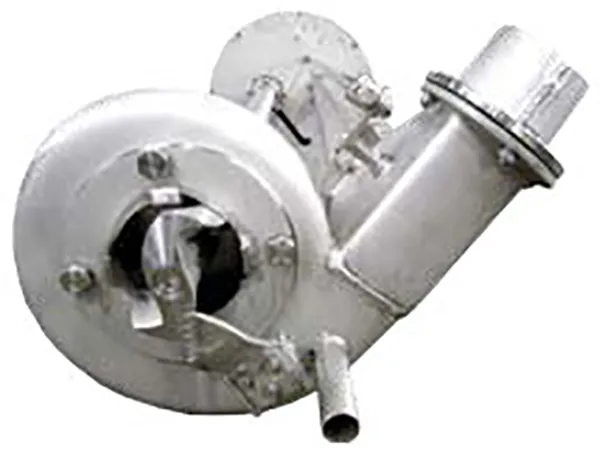

Slurry pump

Slurry pump

The LJ slurry pump belongs to Mamec’s traditional range of products. Long experience as a manufacturer means top quality – our devices are based on the technique we developed over 50 years ago. All Mamec Oy’s products are designed to work under challenging and difficult conditions. High technical expertise ensures the individual implementation of LJ pumps together with a steady safe function.

An effective shredder guarantees a smooth function

The function of the LJ slurry pump is based on the state of art design of the shredder construction. The construction ensures an efficient pumping of thick and problematic sediment. Acid-resistant steel can be used as a raw material for Mamec Oy’s LJ pumps, if desired.

Using the best materials in our slurry pumps

• Slurry pump volute: Molded steel sheet
• Impeller + tooth ring: Surfaced hardened steel or acid-resistant steel
• Impeller shaft: Acid-resistant steel
• Inner shaft of the frame tube: Special Steel
• Slide ring sealing: Ceramic Silicon Carbide sealing surfaces, body parts made of acid-resistant steel
• Bearing: Roller bearing and oil lubrication
• Components in contact with fluid: Steel or stainless steel, S355 (LJ pumps), acid-resistant steel EN1.4404 (AISI 316), (HLJ pumps)
• Surface treatment and painting: Fe Sa ½ Fo, blue polyester powder, RAL 5003

Working structure of a slurry pump

Our products have a functional design that is designed to withstand demanding usage conditions and they can be equipped with a mixing valve. In that case the slurry pump is mixing as well as pumping. Valve control can be selected either by hand lever (pumping or mixing), with manual screw (stepless), linear servo actuator or with compressed air or hydraulic cylinder.

Structure

• Either weather protection or lifting rods
• High quality electric motor
• Flexible, high quality coupling
• Oil lubrication
• Roller bearings
• Flexible long shaft made of special steel
• Riser pipe (optional). It is removable from the mounting plate
• Roller bearings in the bearing housing
• Pump volute with molded steel plate
• Suction hole with a really effective shredder
