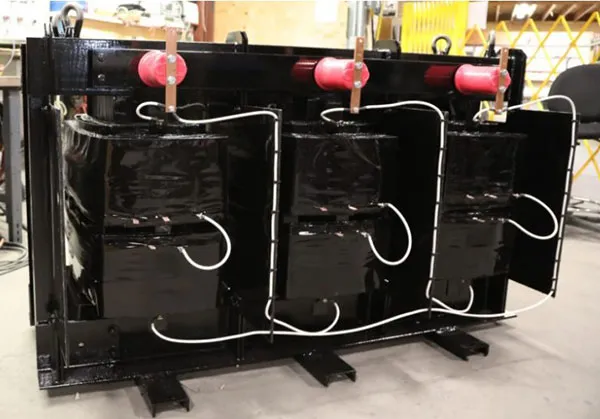

Distribution Transformers

Distribution transformers are used to step down voltages to a final supply voltage for government, commercial and industrial facilities.

Features

• Power rating up to 3000 KVA
• Primary Voltages to 25kV class, 125 kV BIL
• Single or three phase design
• High Efficiency to comply with Department of Energy requirements
• Frequency: 50, 60, and 400 Hz operation
• Single or double electrostatic shields
• Dry-type insulation
• Self-cooled construction
• Aluminum or copper windings

 Optional

• Primary taps to compensate for low or high line conditions
• UL Recognized insulation system (Primary must be 600V or less). MSI UL Insulation systems are available in 130°, 180° and 220°C ratings
• CE marking with declaration of conformity ROHS and Low Voltage Directive when applicable
• Private labeling with customer supplied nameplate artwork. Units that are private labeled cannot carry our UL label
• NEMA 1 (indoor) or NEMA 3R (outdoor) enclosure with ANSI 61 gray powder coat finish
• Final Test Reports with optional Certificate of Compliance
