MAGNETIC PRODUCTS, INC. (MPI)

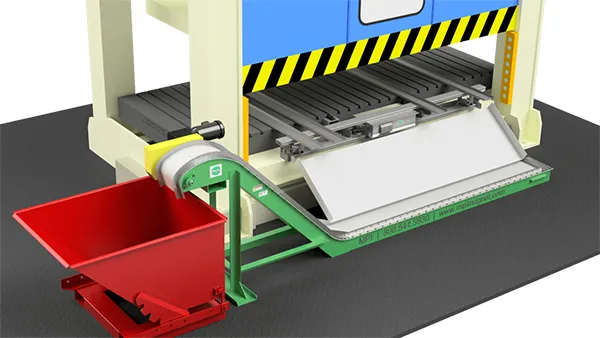

Beltless Magnetic Conveyors

Beltless Magnetic Conveyors

• Wear and impact resistant slider bed
• Minimum 12-gauge stainless steel slider bed (7-gauge for over 18” wide or manganese option)
• Optimized for minimal magnetic drag
• Magnets enclosed in UHMW wrapper, internal stainless magnet supports and welded stainless motor mount
• Automatic chain tensioning
• Internal take-up maintains tension for life of unit and is enclosed to keep debris out of moving parts
• Best in class track system
• Welded structural steel angle and stainless in convex and concave (high wear areas) – No plastic track or laminated light gauge steel channel
• American made drive packages
• Conveyor frames and chain guides are laser cut to precise tolerances
• Conveyor frames are 11 ga. minimum
• Slider beds are 12 ga. stainless steel and sealed liquid-tight
• 7 ga. stainless steel slider beds on units 18″ wide and larger
• 2″ tall side guides standard
• Slider face attachment nuts and bolts are on 1-1/2″ spacing for radius and 4″ spacing for straight sections
• Internal magnets are enclosed in specially formed UHMW cartridges for integrity and reduced friction
• Powerful Ceramic 8 magnet material
• Internal oil bath lubricates all internal moving components for quiet, trouble-free operation
• Self-adjusting chain tensioning system standard
• 1/2 HP 230/460V 3-phase motor with gear reducer and torque limiter
