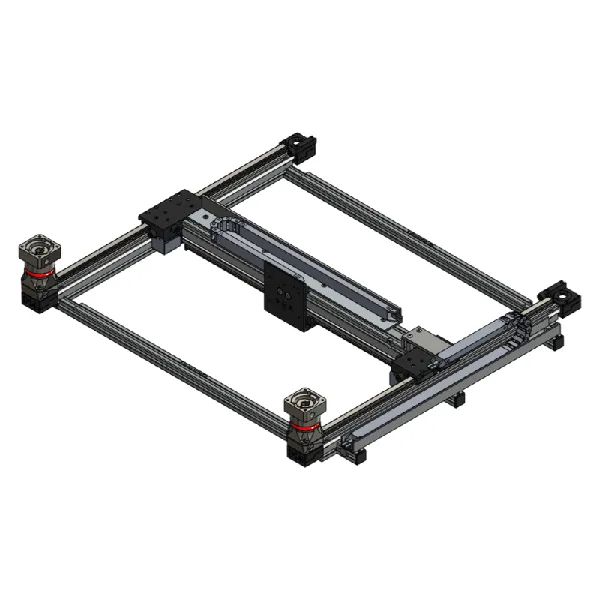

H-Bot Gantry Robots MGS-HBG-12

H-Bot Gantry Robots MGS-HBG-12

H-Bot Gantry Robots MGS-HBG-12

  • Gantry systems do not include T-slot sensors, Gearboxes or Motor mounting adaptors. By checking the Give Me Options for boxes you may specify your requirements in the request for quote entry fields.
  • Gantry systems include cable track. Please refer to the Product Specification download document for the standard size.
  • Motor sizing information is provided in the Product Specification download document.
  • For Travel requirements over Standard values contact Macron Dynamics for assistance in developing a MacBUILT system.

Features:

  • H-Bot configuration
  • High speed, high performance 2 axis Cartesian robot
  • Simple design: One single belt drives both axes
  • Two fixed motor mounting locations
  • Fixed motors reduce load, cable management and inertia requirements
  • Positional repeatability +/- .05 mm
  • Sealed linear profile rail and bearing guidance
  • Low profile
  • Mounting flexibility in either horizontal or vertical orientation

SPECIFICATIONS

Configuration:

X / Y

Designation:

MGS-HBG-12

X Axis Travel:

250 – 2000 [250mm increments]

Y Axis Travel:

250 – 1000 [250mm increments]

Max Load:

10 lbs.

H-Bot Gantry Robots MGS-HBG-12

H-Bot Gantry Robots MGS-HBG-12

Features:

  • H-Bot configuration
  • High speed, high performance 2 axis Cartesian robot
  • Simple design: One single belt drives both axes
  • Two fixed motor mounting locations
  • Fixed motors reduce load, cable management and inertia requirements
  • Positional repeatability +/- .05 mm
  • Sealed linear profile rail and bearing guidance
  • Low profile
  • Mounting flexibility in either horizontal or vertical orientation
