cinox®-V therminox®-V

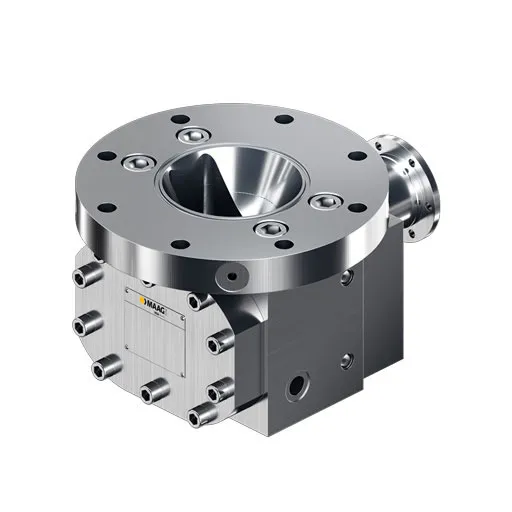

Stainless steel reactor discharge pump for chemical polymer production processes – cinox®-V therminox®-V
The pump models cinox®-V therminox®-V are discharge pumps. They have been designed for highly viscous fluids, which are gently extracted from reactors and degassing devices even when the inlet pressure is low, ensuring optimum fill characteristics and short dwell times. This new pump series combines the outstanding flow characteristics of the polymer pumps with the exacting requirements of the chemical industry.
Advantages
A range of typical pumping media (EN)
Certificates (EN)
Options
Technical Data
Rotational speed [U/Min]
max. 1,500
Differential pressure [bar]
max. 200
Viscosity in mPas
0.3 – 4,000,000
Temperature in °C
-30 – 320
Output l/min
2.5 – 265
Housing
Stainless steel
Gear shafts
Shaft Seals
* Double mechanical seal* Interlock or heater connections available* Seal ring from a range of materials* Packing gland throttled (optional spring loaded)
Connections
Flanges (other optional) ANSI, DIN
