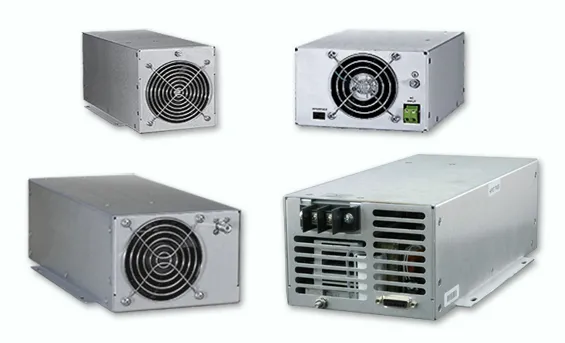

CCPF Capacitor Charging Power Supplies

The CCPF family of capacitor charging power supplies utilizes the latest innovations in power electronics to deliver clean and efficient power for pulsed laser applications. A high power resonant inverter insures reliability during all modes of operating conditions. A soft switching power factor circuit ensures near unity power factor with low EMI. CCPF models can drive both PF loads and reservoir charging circuits. Leakage current is less than 300uA, power factor is greater than 0.99 and conducted emissions meet stringent European regulations. No additional line filter is required to meet EN EN55011 emission requirements.

Available Power Outputs: 500J/sec, 1500J/sec, 2000J/sec, 4000J/sec, 6000J/sec, Output voltage to 20kV

Applications: Lamp Pumped Lasers, Intense Pulsed Light, Excimer Lasers, UV Curing & Sterilization, Medical Laser Systems

CCPF Features

• Ideal Cap Charger for OEM applications.
• Compact size Capacitor Charger.
• Available with medical isolation and low leakage.
• Low EMI Cap Charger.
• Universal input with active power factor correction, PF > .99.
• Interface compatible with older LS, LCS, RSC & XLS models.
