LOVATO ELECTRIC S.P.A

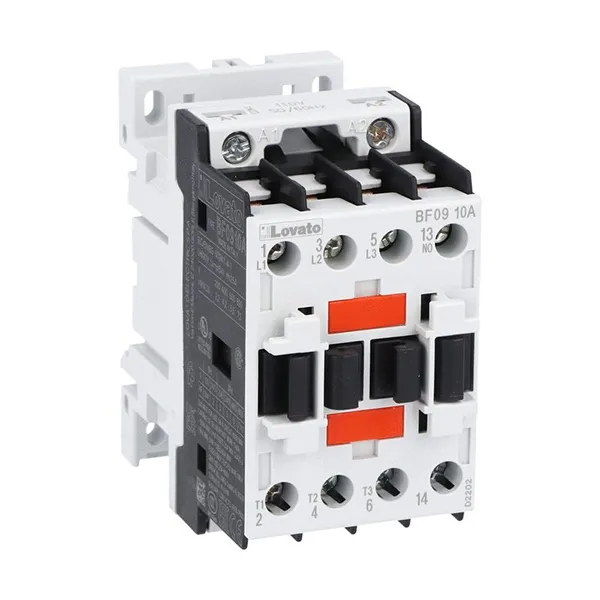

BF0910A230 Three pole contactor

BF0910A230

Three-pole contactor, IEC operating current Ie (AC3) = 9A, AC coil 50/60Hz, 230VAC, 1NO auxiliary contact

• Type of product: Contactors
• Number of poles: 3
• Type of coil: AC coil 50/60Hz
• Rated coil voltage [V]: 230
• IEC operating current Ith (AC1) [A]: 25
• IEC operating current and power Ie (AC3) 400V [A/Kw]: 9A / 4.2Kw
• UL/CSA horsepower ratings 480V [HP]: 5
• Type of built-in auxiliary contacts: 1NO
• Type of mounting: Screw / DIN rail 35mm
