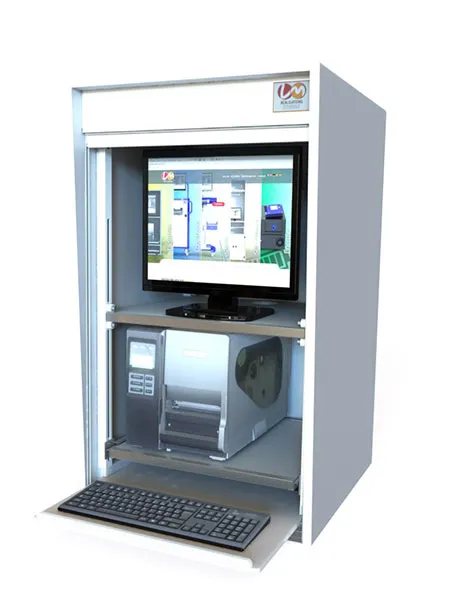

Food-processing computer protection cabinet - Small model

Features :

• Body of the cubicle made from a single thermoformed thermoplastic element making it possible to obtain the side faces and the roof in the same structure;
• Sealed cell and smooth surface making it easy to clean ideal for food-processing environments subject to strict washing/hygiene standards
• Walls in extruded composite material, 19 mm thick, guaranteeing watertightness and mechanical resistance and preventing any condensation or microbial growth;
• No retention angles to avoid the accumulation of waste;
• Connectors: the cell is delivered with:
• An electrical power supply unit with 3 220 volt 10/16 A sockets and a lighted main switch
• A system of 2 standard cable glands to be mounted from 7 to 13 mm for the passage of cables.

Front face :

• Opening and closing of the cell ensured by a sliding curtain with articulated thermoplastic slats guided by two PVC rails with sealing lips guaranteeing total sealing;
• Has two fixed, height-adjustable shelves: one for the screen and the other for a labeller and/or a weighing indicator with the possibility of making the shelves removable (see Option PM 401);
• Removable polyethylene keyboard shelf;
• Handling: a central handle fixed to the sliding curtain.

Backside:

• Removable and sliding down rear panel for easy access to computer equipment.

Its advantages :

• Protection and sealing IP 65
• Workspace optimization
• Fully modular interior structure
