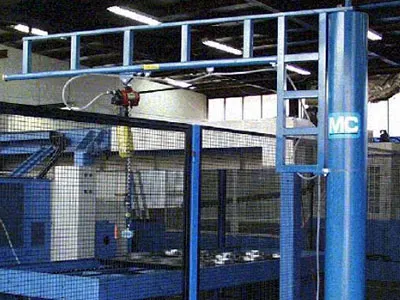

Gorbel Jib Crane

Product Description
Work Station Jib Cranes are ideal substitutes for heavy I-Beam Jib Cranes. They are designed to service circular areas and support tool balancers, air balancers, vacuum lifters and hoists.

Workstation Jib Specifications
All measurements are in millimetres

Capacities from 50 kg to 500 kg., Spans up to 4.8m.
Freestanding 360° rotation.
Wallmounted 200° rotation.
Usually bolted directly to existing floor without special foundations.
Utilise enclosed track for the boom assembly for easier rotation than traditional I-beam jibs.
Feature a retaining pin through the pivot pin to help resist accidental upward dislodgment of the boom assembly.
Include hoist trolley.
Roller bearings provide unsurpassed ease of movement.

They incorporate a vertical mast fixed to the floor and a horizontal boom along which a hoist trolley can travel and rotate about the mast to provide coverage over a circular work area.

MODEL

CAP. (KG) HEIGHT UNDER BOOM SPAN
ROTATION

Min

50

70

45

360(freestanding), 200 (wallmount)
Max

500

4200

4800

Lifting Victoria can supply, install and service Gorbel jib cranes.
