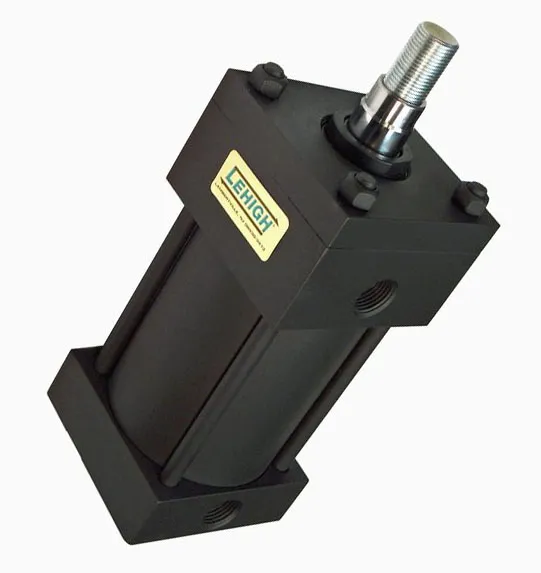

Standard Medium Pressure Hydraulic Pressure

The JHDH Series offers pressure ratings from 2000 PSI with the 1″ bore to 600 PSI for the 6″ bore (see catalog for bore v. maximum working pressure rating). The construction of the actuators in this series gives the system designer the ability to more closely and cost effectively match the actuator to the circuit pressure rather than opting for the 3000 PSI rated high pressure hydraulic series.Brass Tube and Standard Steel Construction

NFPA Tie Rod Design 1-1/2″ to 6″ bore
Polyurethane piston, rod seals, rod wiper and tube o-rings
5/8″ – 3/1/2″ chrome plated piston rod – 100,000 PSI min yield
Sintered bronze/SAE660 bearing
Configurable with tie rod mounted limit switches
Medium Duty Hydraulic Catalog
