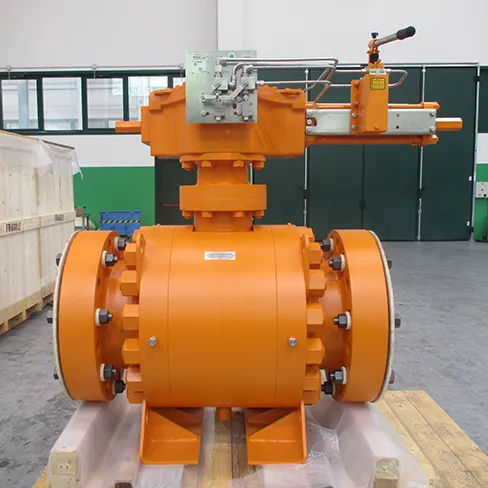

Trunnion Mounted Ball Valves
2/3 piece forged
2 pieces casted
All services / functions / installations
The most flexible & reliable design easy mainteneable at site
Nps: 1⁄2”÷ 60”
Class: 150# ÷ 2500#
Api‐6a: 2000 ÷ 15000 psi
Flanged, bw, cf, hub ends
Lt, cryo, ht, sour, lethal, dirty, hp
Db&b, dib‐1, dib‐2
Soft or metal seated all body & trim meterials
Elastomeric, thermoplastic seals
(from 2/3 forged)
Pipelines, underground, offshore, (subsea) reduced weight, minimized leak path enhanched structural integrity no maintenance foreseen
Nps: 12”÷ 60” typical
Class: 150# ÷ 900# (api‐6a: 2000 ÷ 5000 psi) bw, (flanged)
Lt, sour, dirty, (ht)
Db&b, dib‐1, dib‐2 soft & pmss, (metal) seated carbon steel, ltcs, (duplex‐ss) elastomeric seals, (thermoplastic) easy cladding of functional / wetted surf.
cast body
(hp & s‐sizes) forged
mainteneable in‐line / risers included all functions & installation minimized leak path
nps: 2”÷ 60”
class: 150# ÷ 2500# api‐6a: 2000 ÷ 15000 psi bw, flanged, hub, c.f. sour, lethal, hp, lt, cryo
db&b, dib‐1, dib‐2 soft & metal seated all body & trim materials elastomeric & thermoplastic seals.
