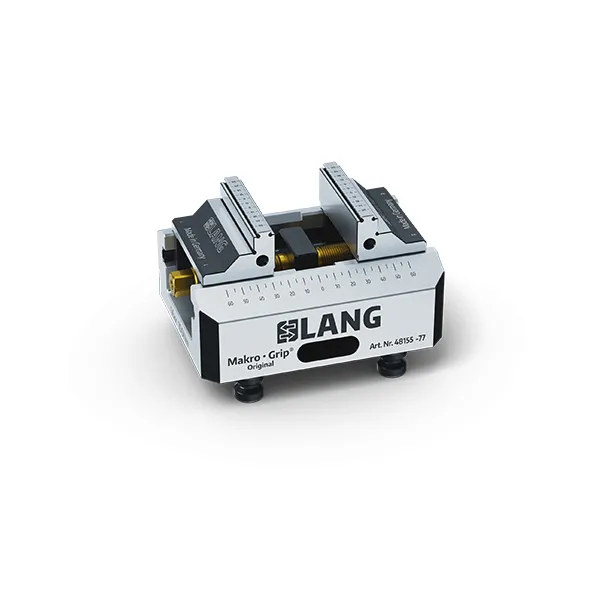

Makro•Grip® 125, 5-Axis Vise
Makro•Grip® 125, 5-Axis Vise
jaw width 125 mm, clamping range 0 - 155 mm
The Makro•Grip® 5-axis vise is the ideal clamping device for the 5-axis machining of blank parts. Due to its compactness and low interference contours, it offers best accessibility to the workpiece. Thanks to the form-closure clamping principle, which requires only a low level of clamping pressure and can, therefore, be clamped without distortion or wear, it achieves the highest holding forces and guarantees maximum process reliability, even with high-tensile material.
CLAMPING RANGE0 - 155 mm (0" - 6.1")
DIMENSIONS160 x 125 x 89 mm (6.3" x 4.92" x 3.5")
CLAMPING METHODby form-fit / by friction
WORKPIECE SHAPEcubical
PACKAGING UNIT1 Piece
WEIGHT8.4 kg (18.52 lbs)
MATERIALSteel
Makro•Grip Stamping Technology and Raw Part Clamping
The Makro•Grip® 5-Axis Vice and its unique benefits of the stamping technology has been considered „The Original“ and a benchmark in the 5-face machining of raw parts for years. Its compact design and high holding forces make the Makro•Grip® 5-Axis Vice the ideal clamping device for machining raw parts.
- Holding forceThanks to the form-closure clamping principle, highest holding forces can be achieved with Makro•Grip®, even at low clamping pressure.
- Process reliabilityClamping withMakro•Grip® provides maximum process reliability and is easy on the workpiece to be processes at the same time.
- AccessibilityThe compact Makro•Grip® vices guarantee ideal accessibility in the 5-axis machining of raw parts.
