Lafert S.p.A.

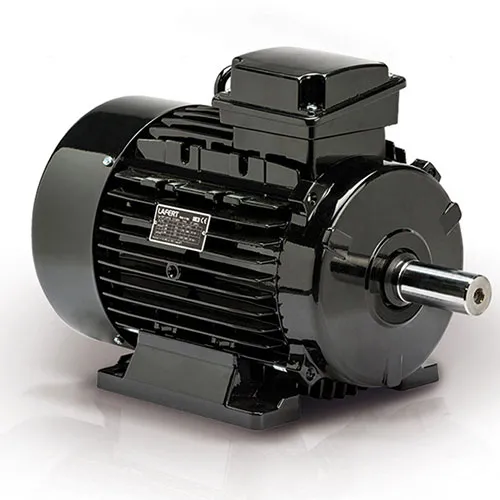

HIGH EFFICIENCY MOTORS-IE2-CURUS

Unlimited efficient motive power

AC motors are the motive power of most industrial machinery. This is the principal use for AC motors and it comprises the bulk of Lafert’s business.

Today, the major factor influencing the motor industry is energy efficiency driven by both increasingly demanding legislation and industry’s greater awareness of green issue responsibilities.

The HIGH EFFICIENCY IE2 series offers the guarantee of reliability and robustness. It complies with the EU’s IE2 efficiency requirements, mandatory for all motors 0.75 to 375kW put into operation with variable speed drive (VSD) from January 2017.

STANDARD SPECIFICATIONS

• Frame sizes: 71 to 315

• Power: 0.75kW to 200kW

• Poles: 2,4 and 6*

• Frequency: 50/60Hz and 60Hz

• Construction: 71 to 160 aluminium design - 180 to 315** cast iron design

• Detachable feet up to 280 frame, simple foot to flange conversion

• Thermal protection 160 frame and up

• Four positions cable entry

• IP 55 protection

• Ease of maintenance

• Clean modern lines with RAL 9005 finish

OPTIONS

• cURus Energy Certification

• CCC Certification (China Compulsory Certification): frame size 56-90, 2,4 et 6 poles

• EAC Certification

• Increased output (progressive motor) for certain frames

• Encoder mounting

• Forced ventilation

• Customised shafts of flanges (up to 160 frame)
