Scienscope X-Ray inspection systems

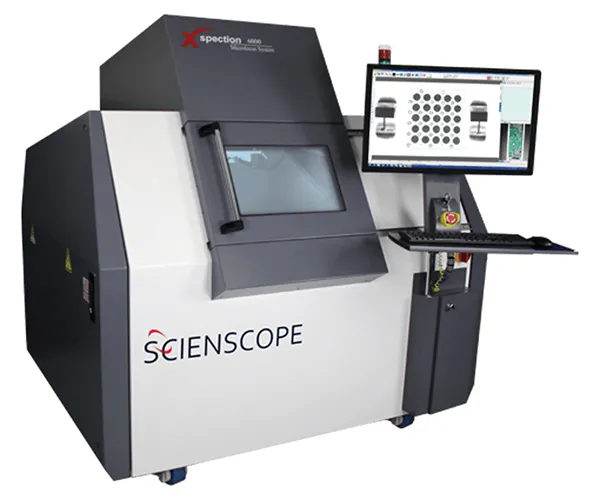

X-Spection 6000

The X-Spection 6000 is our most Technologically Advanced X-Ray Inspection System. As with all X-SCOPE platforms, it includes every advanced s/w tool required for a wide variety of applications. With more tilt and a rotating work table, the X-Spection 6000 is the ultimate in flexibility.

Features

• Fully integrated, 130kV high power micro-focus closed x-ray tube
• Spot size down to 5µ
• 5” x 5“ or 4” x 3“ high resolution and ultra resolution CMOS digital flat panel image detector
• 60° camera tilt for oblique angle viewing
• 22” x 18” Inspection stage with 350° rotation
• Color mapping camera with zoom window provides easy location and identification of faults
• Z axis movement of the x-ray tube and detector
• Computer controlled kV and mA settings
• Computer controlled variable speed X-Y stage (and rotate)
• Simple point and click, intuitive GUI provides access to create advanced inspection routines
• BGA Void detection and automatic calculations
• Easy macro recording for intuitive step and repeat programming
• Various measuring tools for radius, area, perimeter, etc.
• Industrial PC with Windows 7 PRO, 24” LCD flat panel display
