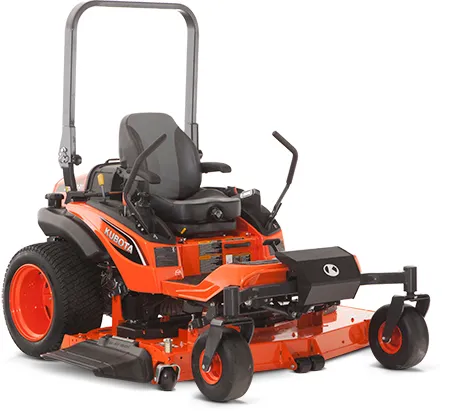

ZD1221L-72
72" Side Discharge / Diesel
Built to take on big mowing jobs, the ZD1221L-72 features a 29.1HP diesel engine, for powerful performance and sheer grunt when you need it most. This side discharge, 72″ deck model is packed with clever features such as a hands-free hydraulic deck lift and on-the-go cutting height adjustment. You can count on the Kubota ZD1221L-72 to take on the toughest mowing jobs with ease. Powered by a 29.1HP liquid cooled Kubota diesel engine, renowned for their durability, high performance, energy efficiency and reliability.
Takes on heavy mowing jobs for extended periods with exceptional fuel efficiency, high torque, quiet operation and reduced emissions. Heavy-duty, 72″ Aerodynamic Cutting System pro deck is designed to maximize cutting performance with smoother airflow and more powerful rotation.
6″ deep, double V-belt deck features a unique baffling system that improves airflow to discharge grass clippings, and an anti-overflow system that reduces grass spillage for a well-manicured look.
Flexible yet sturdy discharge cover helps prevent damage to shrubs and landscaping.
Kubota hydraulic lift system allows you to easily elevate the mower deck and roll right over obstacles with a simple push of the pedal. A special one-touch lock allows you to keep the deck raised for transportation.
Without drive belts and pulleys, the drive shaft smoothly transfers power from the engine to the deck. Shaft drive also requires less maintenance and provides greater dependability.
COMFORT
Cushioned high back suspension seat with adjustable, padded armrests makes for a more comfortable ride. The adjustable seat also features an attached seatbelt for your protection.
The large LCD screen shows all of the key indicators you need to maximize cutting performance and operability.
Spacious operator platform built with uncluttered floor board for ample legroom.
MAINTENANCE
Seat panel lifts up for quick access to the HST.
The maintenance hatch on the operator platform makes upper mower access a snap. All three hatches can be opened at the same time. A dual-element air cleaner is also included.
Kubota’s innovative two-pin, tilt-up, lift feature allows the front to be easily raised without having to remove the mid-mount mower.
