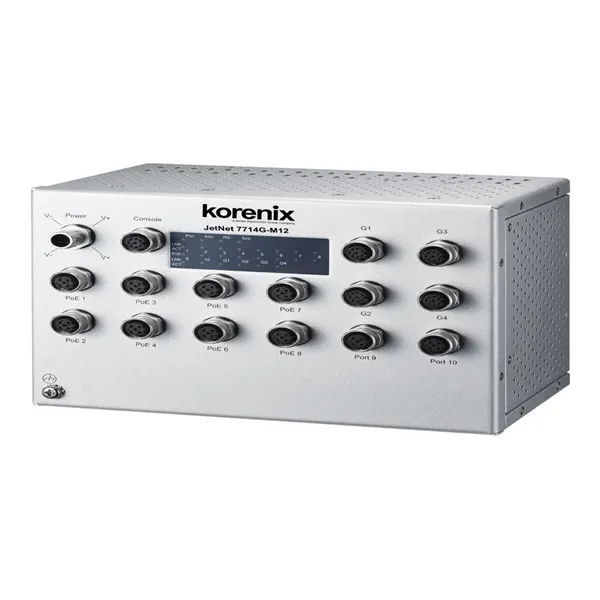

Managed L3 Routing Switch JetNet 7714G-M12 HVDC
Industrial 10 FE/8 PoE, 4GbE, Managed L3 Routing Switch
JetNet 7714G-M12 HVDC Industrial 10 FE/8 PoE, 4GbE, Managed L3 Routing Switch
10 ports Fast Ethernet M12-D, 4 Gigabit M12-A, 8 IEEE 802.3at PSE embedded in Fast Ethernet, Non-Blocking, High Speed Network Switching Fabric, EN50155 Railway on-board power system design, Network Redundancy – MSR (Multiple Super Ring),ITU-T G.8032 ERPS, RSTP, MSTP, Super Chain, Fully Device Management – SNMP v1/v2c/v3, RMON, Web UI, Telnet and Local Console, Friendly Device and Network Topology recovery utility – Korenix View, Korenix NMS, Advanced Network Security –MAC security, IEEE 802.1x Port Based access control , IEEE 802.1x Radius Server authentication, 802.1x MAB, Deny of Service, IP Source Guard, Deny of ARP Inspection, Layer 2 Network Performance – IEEE802.1Q VLAN, Private VLAN, Trunk, Traffic Filtering, DHCP Server/Client, Traffic Prioritize, Forwarding Rate Control, Layer 3 Network Routing Protocols – Static/Dynamic Route, VLAN Routing, Multicast Routing, Hardware Watchdog for System Auto-Recovery, High Level Electromagnetic interference immunity
Managed L3 Routing Switch JetNet 7714G-M12 HVDC Characteristics:
Switch Technology Store and Forward Technology with Non-Blocking Switch Fabric
CPU performance 32 bits CPU with Hardware based Watch-dog timer with 10S reset down-counter
System Memory 32M bytes flash ROM, 256M bytes system RAM
Transfer packet size 64 bytes to 9K (9216) bytes Jumbo Frame
Operating temperature -40~70°C: 100Watts with PoE Loading
Dimensions 145.2mm(H) x 198mm (W) x 120mm (D)-without mounting ears
145.2mm(H) x 230.6mm (W) x 120mm (D)–with mounting ears
