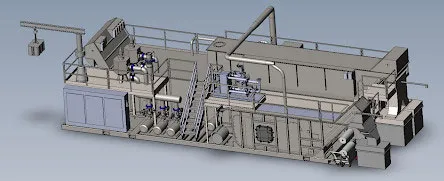

Kleenall Max Central Coolant Filtration System

Kleenall Max Central Coolant Filtration System

Central systems for machining and cutting of engine transmission parts for aluminum, cast iron, and steel. Includes pre-cleaner and optional secondary systems to provide fine filtration on a variety of materials.

Description

Performance Enhancing Features

• Standard Sizes are 500 GPM / 1892 LPM, 1000 GPM / 3785 LPM, 1500 GPM / 5678 LPM, 2000 GPM / 7570 LPM, 2500 GPM / 9463 LPM, 3000 GPM / 11356 LPM.
• Primary Filtration is performed by rotating drums with a heavy-duty replaceable permanent media screen.
• Optional Secondary magnetic filter allows the separation of cast iron and aluminum fines into two streams.
• Side Stream at 15 Percent is directed to a small, vacuum type, disposable media filter to trap and remove the micro fines generated by the machining process.
• Full Flow Secondary Filtration Consisting of automatic backflushing stainless steel elements. (Optional)
• Equipment has a robust automotive-based design and is maintenance friendly to give years of trouble-free service

Coolant Vacuum Polishing Filter

• 10-20% Sidestream Flow Cleaned to 10 Micron
• Minimizes Use of Filtration Media
• Tramp Oil Removed with Spent Media
• Spent Media Automatically Re-rolled at Discharge End

Full Flow Automatic Backflushing Sentinel Filters

• Full Flow Protection to Machines
• 30 Micron Permanent Media
• Pressurized Backflush for Cleaning
• Backflushes to Polishing Filter
