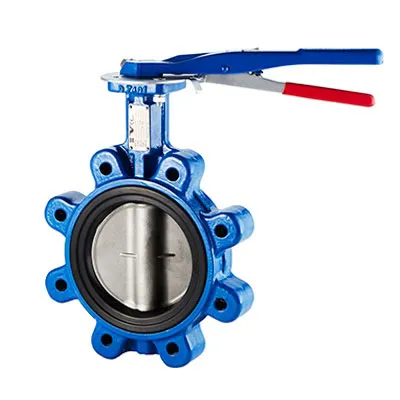

Butterfly Valve, Lugged, EPDM-EPT seat

Butterfly Valve, Lugged, EPDM-EPT seat

Butterfly Valve, Lugged, EPDM-EPT seat

Lugged w/ threaded holes for PN10/16, EPDM/EPT seat

Application: Liquids, gases and powdered media (depending on seat type)

  • Lugged type can be bolted on flange ensuring 100% centeringDouble O-ring seal in stemBottom bearing of bronze, bushing and top bearing of Delrin, bushing provides long lifeShort face to face and low weightExchangeable seatActuator flange ISO 5211 for easy mounting of pneumatic or electric actuator

General Data

Type:

3533

Material:

Ductile iron ASTM A395 w/ blue coating

Pressure class:

PN16: DN40 - DN125



PN10 ≥ DN150

Disc:

Stainless steel AISI 316



(ΔP 16bar DN40-125   ΔP 10bar ≥ DN150)

Stem:

Stainless steel AISI 410

Lever / positioning template:

DN40 - DN300: FCD 45-SG iron / Galvanized steel

Gearbox:

DN200 - DN600: SG iron

Seat:

EPDM/EPT

Face to face:

DIN 3202-K1 / ISO 5752 table 5 short

Actuator flange:

ISO 5211

Connection:

Mounting between DIN flanges PN10/16

Temperature:

NBR: -20°C to +120°C

Options:

Pneumatic or electric actuator



Wafer type



Seat type (NBR, Viton, Silicone)



Disc material (Al-Br, SG iron)



PN16 for larger dimensions
