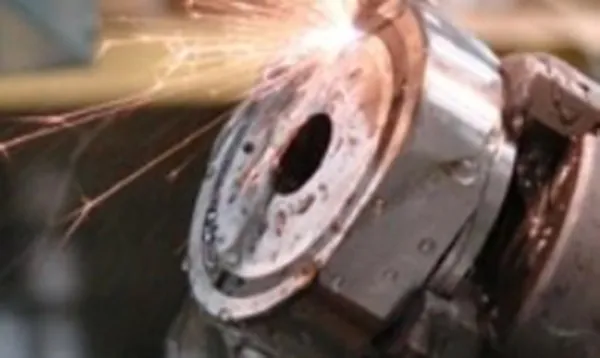

SMALL HOLE EDM DRILLING SERVICES
Most EDM drilling machines are CNC-controlled, however, few are actually mounted on the table of a CNC mill. By retrofitting an EDM driller onto a CNC mill, KLH offers micro hole and small hole EDM drilling services on parts over 2,200 lbs and in excess of 40" long. Size and weight are rarely a restriction when popping or drilling fast, small holes at KLH.
SMALL HOLE EDM DRILLING CAPABILITIES
+/- 0.001” TOLERANCE
Typical tolerance, but can vary due to type of material.
0.007” TO 0.25” DIAMETER HOLES
KLH stocks a variety of single and multi-channel tube configurations.
41” X 19” x 23” WORK ENVELOPE
The non-submersible drillers have virtually no limits in the X- & Y-axis.
BURR-FREE HOLE
Spark erosion process leaves clean holes ready for the medical industry.
ALL CONDUCTIVE MATERIAL
Drills soft or hard metals, graphite, carbide, and polycrystalline diamond.
ELECTRODE TOOL CHANGER
Uninterrupted production EDM drilling up to 16 electrodes and 4 different sizes.
