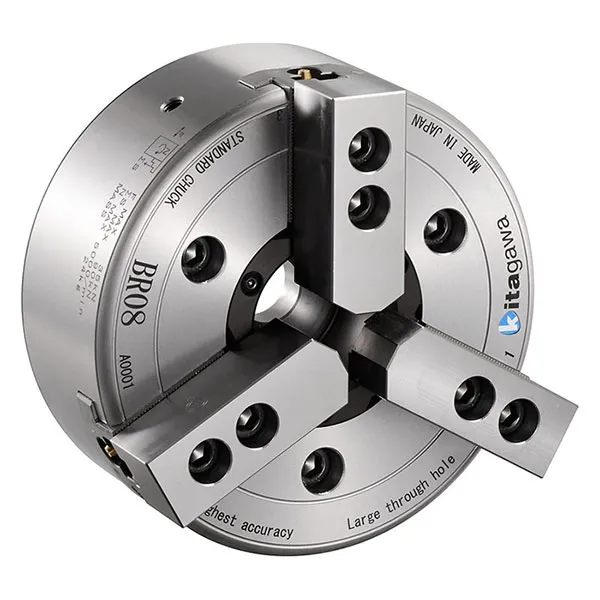

Standard chuck-BR series

• Gripping accuracy of 0.01 mm T.I.R. or less

• Reduced jaw-lift

• Interchangeable with Kitagawa B-200 and BB200 series

• With BR-Plus optional dedicated T-nuts, the repeatability of jaws at detaching and attaching is 0.01 mm T.I.R. or less

CE correspondence

Note 1) The gripping accuracy is the Total Indicator Reading of a test bar right after forming jaws to grip a test bar.

Note 2) The repeatability is the Total Indicator Reading of a test bar measured by detaching the formed jaws from the chuck and mounting them again in the same position.

Note 3) Both gripping accuracy and repeatability are the T.I.R. of a test bar at 10 mm above from Kitagawa standard soft jaw.

All the above criteria are based on our internal regulations.
