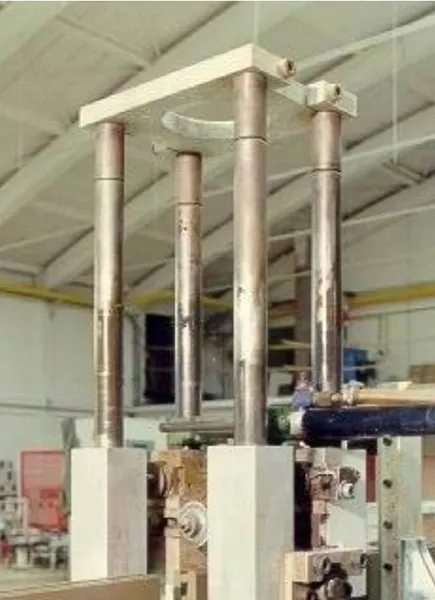

Split tile cutter

Split tile cutter

technical features

• Base frame in stable welded steel construction.
• The drive elements are maintenance-free in ball bearings and steel linear guides
• The speed of the clay column is measured using a measuring roller / measuring tape with a pulse generator.
• The high cutting accuracy is achieved by an electronic control.
• It is driven by two servomotors with electronic cam disks.

Larger cutting lengths are also possible thanks to the electronic cam disk.

The choice of which cutting table is the right one depends on the performance, variety of formats and whether the material is better cut with a wire or a knife.

formats

Type 4163 - wire cutTB max: 80 mmTH max: 330 mmTS min/max: 160/330 mm

Type 4163-S - wire cut special sizeTB max.: 120 mmTH max.: 450 mmTS min/max.: 160/450 mm
