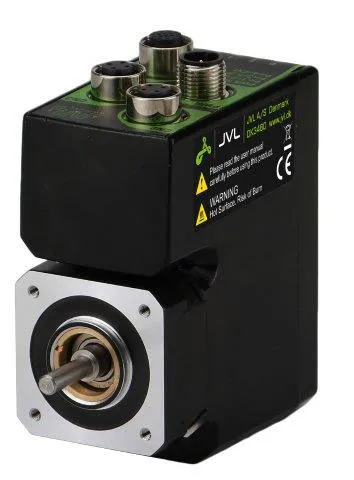

MIS171-MIS176 ServoStep

MIS171-MIS176 ServoStep

The Integrated ServoStep Motors from JVL.

All in one smartmotor with integrated controller. A wealth of possibilities with this new NEMA17 stepper with closed-loop servo-operation up to 3000RPM, It offers the highest microstepping resolution, position/velocity/torque servo-performance up to 0.78 Nm.

• MIS171 - 0.18 Nm
• MIS173 - 0.40 Nm
• MIS176 - 0.78 Nm

Available with CANbus, RS485, SSI, Industrial Ethernet Profinet, Ethercat, Ethernet/IP, Powerlink, Ethernet TCP, Sercos III , Absolute multiturn encoder, PLC 8IOA, clock/direction and STO.

Velocity resolution 0.01RPM for extreme low speed operation and 409600 step/rev for highest precision. Different shaft diameter, brakes and high IP protection make it ideal for machine adjustment or other demanding applications.

• Closed-Loop Operation
• Real Torque Control Mode
• PLC build in
• Absolute Encoder
• 409600 step/rev
• High Resolution Encoder
• Operation Control Modes

Optional:

• STO connector
• IO-Link Gateway
• CANopen
• Industrial Ethernet
• Wifi/BT, Wireless Ethernet
