Fiber laser cutter SF3015H
Fiber laser cutter SF3015H
What is metal fiber laser cutting machine?

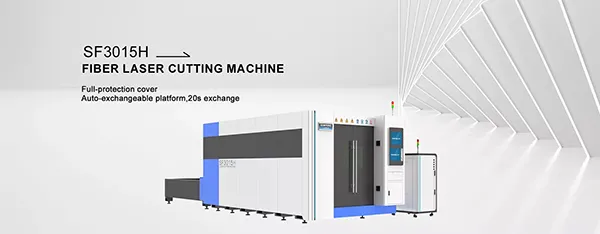

High power fiber laser cutter SF3015H is mainly designed for high power from 6kw to 30kw. With full-protection cover, it can protect the worker from the harm of laser rediation and reduce the environment pollution. It's also equipped with auto-exchangeable platforms, which can save the loading time and improve the processing efficiency. It only takes he exchange platform 20 seconds to complete the exchange.
Technical Parameters of Metal Fiber Laser Cutter
|
Model
|
SF3015H/SF4020H/SF6020H/SF6025H/SF8025H/SF12025H
|
|
Working Area(mm)
|
3050* 1530/4050 * 2030/6050* 2030/6050* 2530/ 8050 * 2530/12050* 2530
|
|
Laser Power(kw)
|
6/8/12/15/20/30
|
|
Maximum Speed(m/min)
|
130
|
|
Maximum acceleration(G)
|
1.0
|
|
X/Y Axis positioning accuracy(mm/m)
|
±0.05
|
|
X/Y Axis repeated positioning accuracy(mm)
|
± 0.02
|
Main Features of Metal Fiber Laser Cutter
Heavy-load Thermal Isolated Hollow Bed
The heavy-load thermal isolated hollow bed is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and precise processing by ultra-large gantry milling machine ensure that the bed has sufficient structural stability and shock resistance.
The bed will not be deformed after long-term use, which improves the service life of the equipment.
Intelligent Spiral Vacuum Dust Removal
Intelligent spiral vacuum dust removal is a time-sharing system with automatical air outlet switch, sectional air exhaust, and can cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.8kw or higher power machine has gaphite, copper protection.
Aviation Standard Aluminum Beam
Aviation-grade high-strength aluminum alloy beams is light weighted with low inertia. The built-in triangular reinforced structure contributes to strong rigidity and good shock-proof performance.
Rough machining after annealing can eliminate internal stress, while fine machining after secondary vibration aging treatment improves the overall strength and stability of the beam.
What are the Application Materials of 3015H?
SF3015H metal sheet fiber laser cutter is used to cut mild steel, stainless steel, aluminum alloy, brass and other steel; Application in automobile industry, sheet metal industry, furniture industry, advertising industry,etc.
