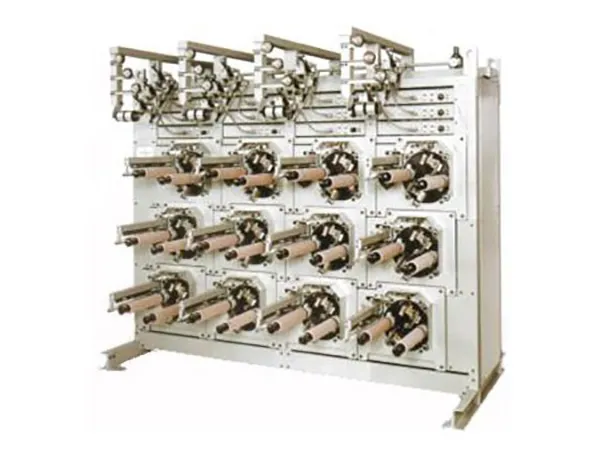

Winders EKTW-CA
Winders EKTW-CA
This machine in the KTW series offers a double spindle automatic bobbin change feature. This feature contributes to labor saving and space saving, for take up of continuous fiber production. The auto bobbin change feature activates once the package has reached a pre-set yardage.The unit is ideal for carbon fiber, as well as higher speed aramid fibers.
Shape of Package:
254mm(10”) traverse, square-end cheese, Maximum diameter 250mmø
Winding Tube:
ID 76ø X OD 86ø X 280mml
Winding Speed:
Maximum 1000m/minute (subject to yarn type and application)
Yarns Applicable:
Carbon fiber, aramid fibers and others
Precise control
SCR control by dancer roller
Tension
50 ~1,000g with tension release
Contact Pressure
1.5 ~3kg with auto pressure release
Motor
Totally enclosed, fan cooled AC motor, motor is a variable speed type 100w
Electricity to Winding Unit
3 phase 200V 50/60HZ
Construction Frame
3~4 head high layout x 1 ~4 lines/frame
