Italyvacuum Srl

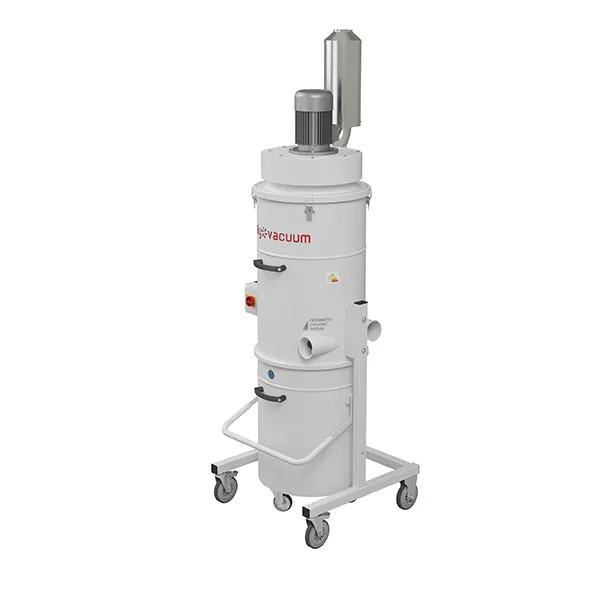

Maxi Vortex 58

MAXI VORTEX 58 (extra-large size) undoubtedly represents the top of the range of the Vortex 58 line for the division of chips and dust and has exceptional performances that extend over time thanks to a further increased cyclone chamber which allows an even more powerful cyclonic effect by virtue of its remarkable increase in internal volume.

This difference in height allows the filter to be raised above the suctioned material so that occlusion is avoided and the material circulates inside it with greater freedom and fluidity.

Designed from the outset to achieve this performance, it measures an increase in height of 200mm as compared to the standard model and does not require extensions to be fitted later.

GENERALINFORMATION
Motors available:  from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) - Fan  /  from 2,2 kW ( 3hp ) to 25 kW ( 33.5hp ) - Turbine
N° inlet [ Ø ]:  N° 1  [ 100mm – 4” / 120mm – 4.7”  / 160mm – 6.3” ]
Container capacity:  175 Lt ( 38 gal )
