Italcontrol Srl

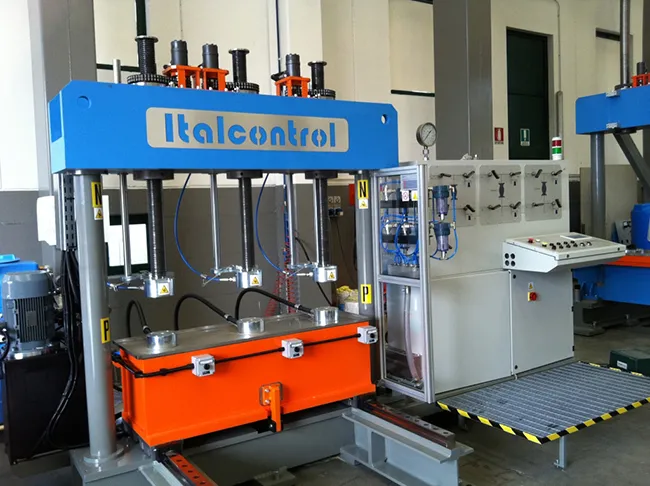

Vertical Multiple Benches-MTS series

Vertical Multiple Benches for testing up to 5 valves simultaneously.

• suitable for tests on valves in the range from 1/2 "to 12"

• maximum reaction force up to 400 tons on all workstations

• loss discrimination on every single station

• testing according to API, ANSI, DIN, BS, ISO, EN

• hydraulic pressure tests up to 4000 bar

• pressure tests in gas up to 2100 bar

• Torque detection system up to 150,000 Nm

• check leakage and seal seats with analog or digital instrumentation

• ATEX compliance (optional)
