LINEAR UNIT CONFIGURATOR SPINDLE DRIVE-LES 5

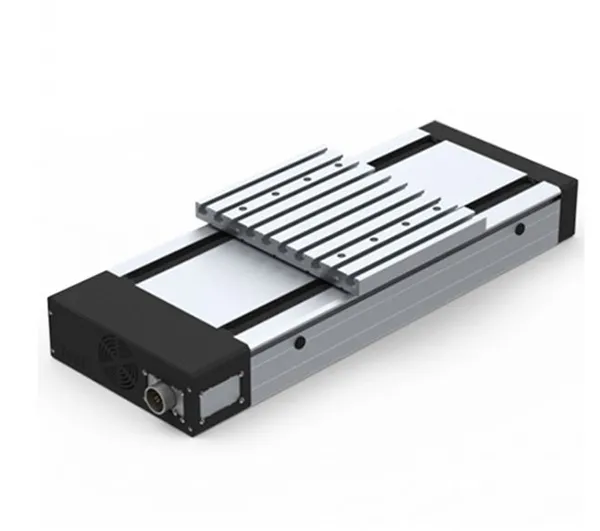

LES 5 with spindle drive
2 TRACK, 225 MM WIDE, INTEGRATED MOTOR
FEATURES
Aluminium shaft housing profile W225 × H75 mm, naturally anodised
Clamping area and profile underside milled flat
With 4 precision steel shafts Ø 12 h6, material Cf53, Hardness 60 ± 2 HRC
Aluminium shaft slides WS 5/70, 2 x WS 5/70 (70 mm long), adjustable for no play, central lubrication system
Recirculating ball drive 2.5 / 4 / 5 / 10 and 20 mm pitches
Profile sealing with friction-resistant lip seals
Cast aluminium end plates
With 2 limit or reference switches, Repeat accuracy ± 0.02 mm
Sealed angular contact bearings in drive - steel flange
PROCESS TRAVEL
at 1 × WS 5 / 70 = Profile length (L1) - 150 mm
at 2 × WS 5 / 70 = Profile length (L1) - 280 mm
Profile length (L1) from 290 mm up to 2990 mm profile lengths in 100 mm raster available!
Maximum length of up to 3490 mm on request.
OPTIONS
Black anodized aluminium profile
Electromagnetic brake
Steel slides LS2 (Part no. 223007)
Limit switch attachment kit (see accessories)
AVAILABLE ON REQUEST
Length measuring system
Bellows gaiter cover
