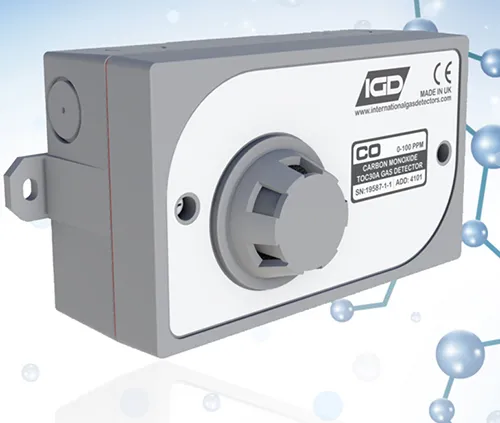

TOC-30 Series Safe Area Gas Detector

TOC-30 Series Safe Area Gas Detector

TOC-30 Series Safe Area Gas Detector’s from IGD are available as both legacy Analogue 4-20mA gas detectors or modern addressable versions. This series of Safe Area Gas Detector’s are manufactured in rugged ABS housings which provide a number of advantages. Sealing is moulded in as part of the housing with detector and electronics in separated compartments. The detector is protected by a unique labyrinth arrangement which provides both dust and splash protection.

Why Choose ABS Housings?

ABS is tough and does not corrode providing a high degree of chemical resistance. The detectors and electronics used in the TOC-30 series fixed gas detection are identical to those used in our Tocsin 102 ATEX detectors. The only difference is the housing material, if you don’t need a zoned area ATEX detector then we don’t expect you to pay for one. Safe Area Gas Detector’s cover applications that are not zoned ATEX areas. What we do ensure is that the detection quality is identical, they are after all doing the same job. The housing is designed to wall mount with conduit knock outs pre-moulded. Alternately TOC-30 series detector’s housing can mounted to Dado trunking or be flush wall mounted as they are a standard 2-gang mount.

TOC-30 Series detectors are available in a range of gas types:

• Pellistors for detecting flammable gases, Methane, LPG, Propane, Butane, Hydrogen and many more

• Infra-Red for detecting CO2, N2O and also most flammables

• Electrochemical types for most Toxic gases including, H2S, CO, Oxygen, NO2, CL2, SO2 and more

Additionally IGD’s TOC-30 fixed gas detection for Oxygen feature 5 year life polymer cells. These cells have an extended service life over legacy lead based cells. Our longest in-service units to date have been in operation for over 8 years providing enhanced protection whilst saving operating costs.
