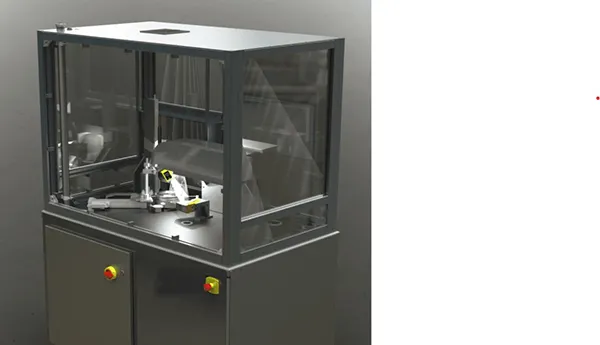

Round Disk Part Inspection

This round disk part inspection is an ideal vision system for 360 degree part inspection. This vision solution was custom designed to reduce the takt time required.

Each part is presented to a rotary stand by use of a 2-axis robot. Once placed onto the rotary stand, each round disk is inspected 360 degrees in 3D form and can be utilized to inspect for an array of items including manufacturing defects and part specific registration marking.

Features include 3D measurement with accuracy of 0.004mm, 100% full part handling, full part inspection, high-speed capabilities and is compact in size.
