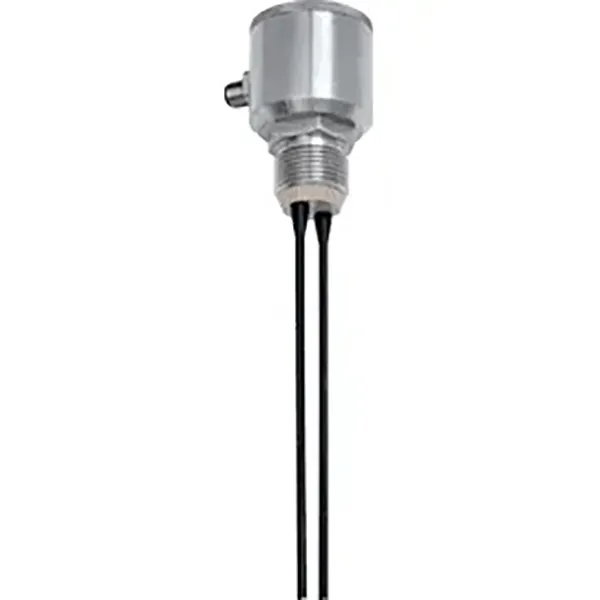

NVS-345
NVS-345
Conductive Multilevel Sensor
Application/intended use
Point level measurement in aqueous, conductive media in tanks and pipes with minimum conductivity.
The conductivity depends on the evaluation device: 1 μS/cm when using external evaluation units, e.g. VNV series or ZNV-Z, and 10 μS/cm when using the internal level transmitter MNV-1C.
Application examples
- Empty/full indication in tanks ·
- Level control in tanks ·
- Overfill protection in dosing systems
Hygienic design/process connection (NVS-345 and NVS-50 only)
- Hygienic and easy-to-sterilize measuring point (EHEDG certification, 3-A certificates) ·
- Elastomer-free sealing system for gap-free sensor installation without dead space ·
- CIP/SIP cleaning up to 143 °C/120 min ·
- Sensor made entirely of stainless steel and PEEK; PFA coating ·
- Adapters for all standard process connections ·
- Product-contacting parts are compliant with EU Regulation 10/2011 and FDA (NVS-345 and NVS-50) ·
- Conformity with 3-A standard (NVS-345 only)
Special features/advantages
- Defined position of the cable entry (NVS-345 only) ·
- Available with or without an integrated level transmitter MNV-1C ·
- Choice of different electrical connections ·
- Electrodes can be shortened and bent as required
Options/accessories
Version with rope electrodes available (NVS-110.SEIL) Product Information NVS-50, -110, -120, -345 Conductive Multilevel Sensor NVS-345/...B NVS-50/...N NVS-120/...B NVS-110.SEIL/... Authorizations 74-06 TYPE EL March 2006
Selection of the right sensor type
Coating: For foamy, adhesive (e.g. yogurt) and/or wetting media (e.g. alkaline solutions), we suggest using a sensor with a coated electrode. Sensors with an uncoated electrode are recommended for aqueous, non-adhesive and non-wetting media. If rod lengths are greater than 500 mm, the coated version should be used since the electrodes may come into contact with each other and lead to incorrect readings.
