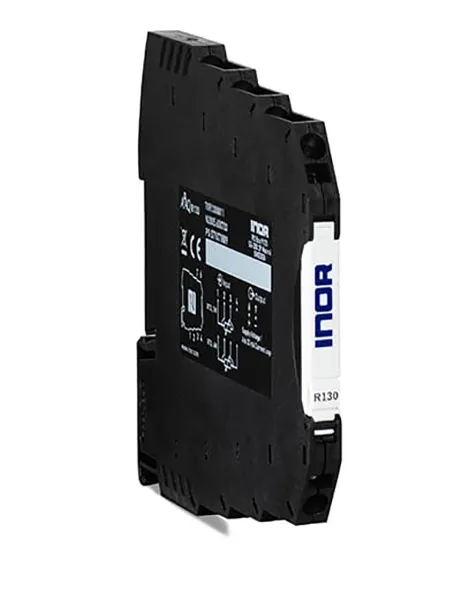

APAQ R130
Digital 2-wire transmitter for Pt100 and Pt1000 with wireless communication
The APAQ R130RTD is a modern transmitter with high reliability and great performance. External influences such as ambient temperature, vibration, moisture and EMC interference have minimal influence on the measurement result, thanks to the robust design.
What characterizes APAQ R130RTD is simplicity. You can easily configure the transmitters wirelessly via NFC with your smartphone or tablet. There is no need for expensive configuration tools or fixed workstations for transmitter configuration.
Technical Specification
Type
Rail mounted
Input
Pt100, Pt1000
Type of transmitter
Digital
Output
4-20 mA
Measuring range
–200…+850 °C / -328…+1562 °F
Sensor error
NAMUR NE43
Adjustments – Zero point
Any value within range limits
Adjustments – Minimum span
20 °C / 36 °F
Ambient temperature
–40…+85 °C / -40…+185 °F
Humidity
0…98% RH (non-condensing)
Vibration
IEC 60068-2-6,10 g
EMC
EN 61326-1 and EN 61326-2-3
Isolation
Unisolated
Power supply
6…32 VDC
Long-term stability
Max. drift ±0,05 % of span/year
Typical accuracy
Max. ±0,15 K or ±0,15 % of span
Adjustable filtering level
0,4 to 26 s
Configuration
App: INOR Connect*
Wireless communication
NFCTM
