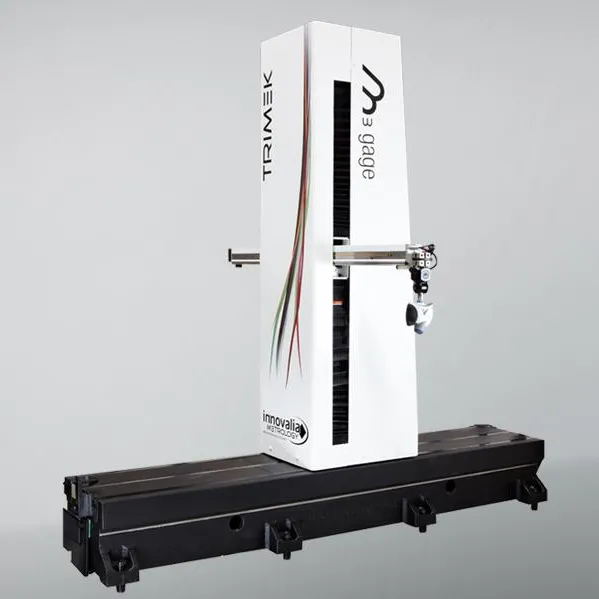

Coordinate measuring machine Vulkan Gage

Coordinate measuring machine Vulkan Gage

Coordinate measuring machine Vulkan Gage machine architecture is based on horizontal arm with high stiffness structure.

Features

  • Main structure made ​​of stabilized steel.

  • Aluminium Y-axis unit with a pyramidal cross section arm.

  • Linear shoes on all axes for high precision guidance.

  • Rack and pinion drive on X-axis and ball spindle on Y- and Z-axes.

  • Special mechanical system for arm bending control.

  • Aluminium crosshead, supported by a guided counterweight joined through double steel cored strip.

  • Measuring rulers and Renishaw linear optical heads on all machine axis.

  • Continuous PHS1 head with extensions up to 750 mm.
