I3R modular wheels
I3R modular wheels
Energy recovery wheels in sections for easy installations anywhere.
FEATURES AND BENEFITS

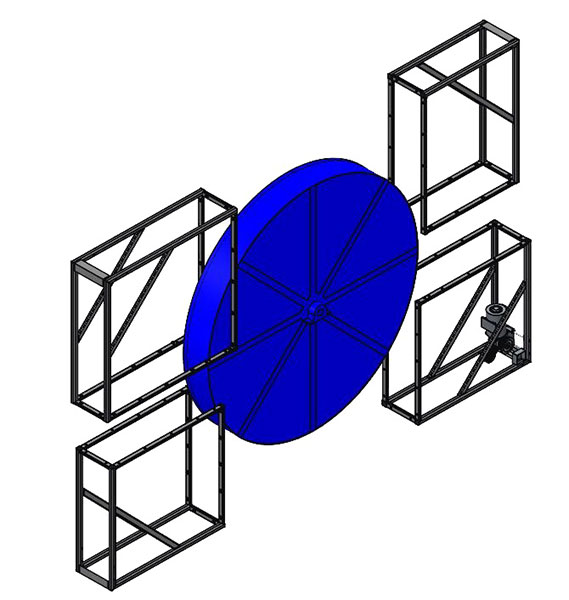

- Wheel frames shipped in four sections to reach the tightest locations
- Heavy duty, 100% redesigned construction
- Standard 5 years full parts and labor warranty
- Fast payback due to great sensible and latent effectiveness
- Available with 3 angstrom molecular sieve (MS3A) or polymer (HSP) desiccant
- Equipped with the best seal on the market (AirloopTM) for the lowest AHU fan operating costs and cross leakage levels
- AHRI certified performances; Bears the AHRI Standard 1060-2011 certified seal
- Segmented design and serviceable frame for ease of maintenance
- Bactericide desiccant; will not promote the growth of mold or bacteria
- Meets NFPA 90A and 90B, tested under UL Standard 723
While fully assembled I3 wheels are the logical choice for new rooftop HVAC units, they can face size problems for mechanical room or retrofit installations. For projects where a fully assembled wheel is just too large to reach the installation area, the new I3R modular wheels for field installation are the solution.
New I3R modular wheels come in easy-carry kits that easily fit through all standard doors, elevators or stairways to reach the tightest locations. Supported by our team of highly trained installers, our field installed I3R wheels are subject to the same rigorous quality control as our in-house manufactured models.
All I3R wheels are also tested in-house prior to being carefully packed and shipped. This ensures extra-durable, trouble-free installation and products; supported by our unique 5-years full warranty on material and labor.
Regardless of the make and model of the wheel that needs to be replaced, the new I3R wheel will meet and exceed expectations for all new or retrofit installations in tight or limited access areas.
OPTIONS
- Epoxy coating on frame
- Epoxy coating on media
- I3R field installation models
Datasheets and other product documentation in the Library section.
OPERATING PRINCIPLE
The I3 energy recovery wheel offers great energy recovery both in summer and winter modes. In summer times, the wheel will greatly reduce the sensible (heat) and latent (moisture) energies leading to significant cooling and dehumidification cost reductions. Following the same principle, during winter months, the wheel will recover both the heat and moisture from the return air stream and add it to the cold outdoor air for great heating and humidification savings.
