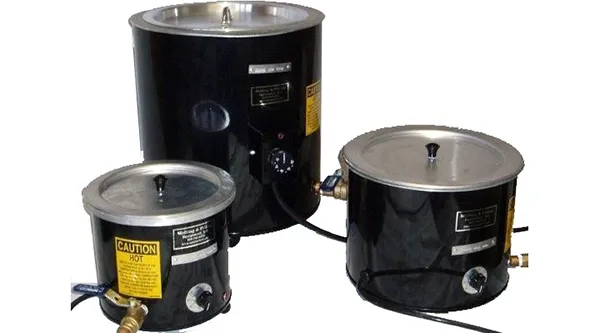

1MT Electrical Wax Melting Tank
1MT Electrical Wax Melting Tank
SpecificationsWax Melter is a wax-melting & conditioning machine extensively used in Investment Casting. Equipment Name & Model No: WAX MELTING & CONDITIONING UNIT : - WM 50 Application: The Wax Melter is a wax-melting and conditioning machine. Purchased IC Wax is in the form of solid slabs. This is melted, conditioned and brought to a certain pre-determined temperature before transferring it to the wax injection machines.
Specifications and Salient Feature
Melting ChamberWax Melter is a wax-melting & conditioning machine extensively used in Investment Casting. Equipment Name & Model No: WAX MELTING & CONDITIONING UNIT : - WM 50 Application: The Wax Melter is a wax-melting and conditioning machine. Purchased IC Wax is in the form of solid slabs. This is melted, conditioned and brought to a certain pre-determined temperature before transferring it to the wax injection machines.
MOC : MS.Thermal Insulation: The melting chamber is insulated on all sides with 64 Kg/m3 Ceramic fiber and clad with powder coated MS sheet for protection
Heat Source4 Nos. strip heaters for quick melting on slab melter designed for easy access during maintenance.
Melting rate15Kgs / hr.Conditioning Tank : 50 Kgs capacity, Dia. 400mm X 500mm Ht.
Heat SourceElectrical finned air heater designed to maintain constant tank temperature. The heater is easily accessible for maintenance.
StirrerA sturdy and well-designed stirrer mounted on thrust bearings is provided to ensure homogeneity of the wax blend.
MOC : MSStirrer Drive : 1/4th Hp geared motor 3Phase AC supply 415V. Make REMI / Bonfiglioli Wax drain : 3/4th heavy-duty ball valve. Provided with a drain heater.
Melting rate : 15Kgs / hr.Conditioning Tank : 50 Kgs capacity, Dia. 400mm X 500mm Ht.
