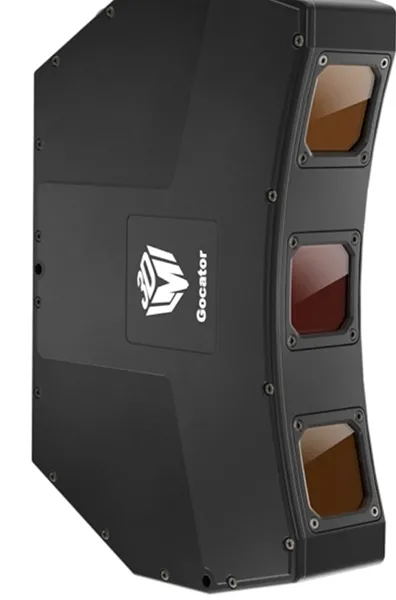

The LMI Technologies Gocator 3520 is a wide field of view, high resolution, 3D scanner. Structured light scanners use an LED light source to project a pattern onto the surface of a target. The pattern, which will be distorted due to the object's natural shape, is then captured by the 3D machine vision camera and used to digitally reconstruct the part.INDUSTRIAL MACHINE VISION

Structured light 3D systems are either designed around decoding a single pattern, called textured projection,  or a sequence of patterns, called fringe projection. The textured patterns generated by a single pattern capture yield relatively low resolution 3D point clouds, down to as small as 100 microns, while fringe patterns that are produced from a sequence of patterns yield much higher resolution 3D images, as high as one micron.MACHINE VISION CAMERA

A structured light methodology enables one to capture a scan of the target's whole surface and then to simultaneously inspect many aspects of the object like surface gaps-and-flush, studs, fasteners, and holes. 3D structured light scanning ensures that defined quality levels are met even as the product is assembled.
