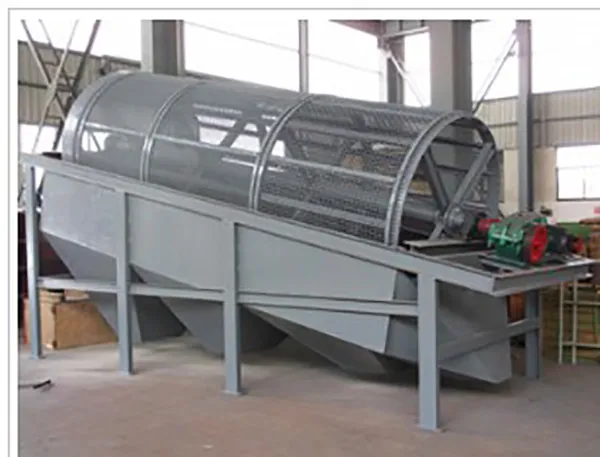

GTS trommel screen

The main structure of GTS trommel screen (cylindrical rotary screen) is the screening cylinder, which is composed of several circular screens, which are inclined to the ground plane as a whole, and the outside is sealed by a sealed isolation cover to prevent environmental pollution. The screening cylinder rotates at a certain speed through the variable speed reduction system, and the materials are separated through the screening cylinder from top to bottom. The fine material is discharged from the lower part of the front end of the screening cylinder, and the coarse material is discharged from the lower end of the screening cylinder. The trommel screen (cylindrical rotary screen) can be equipped with a comb-shaped screen cleaning mechanism. During the screening process, the relative movement between the comb-shaped screen cleaning mechanism and the screening cylinder can achieve the effect of continuous cleaning of the screen body, making the screen The tube is divided in the whole work
