Helwig Carbon Products, Inc

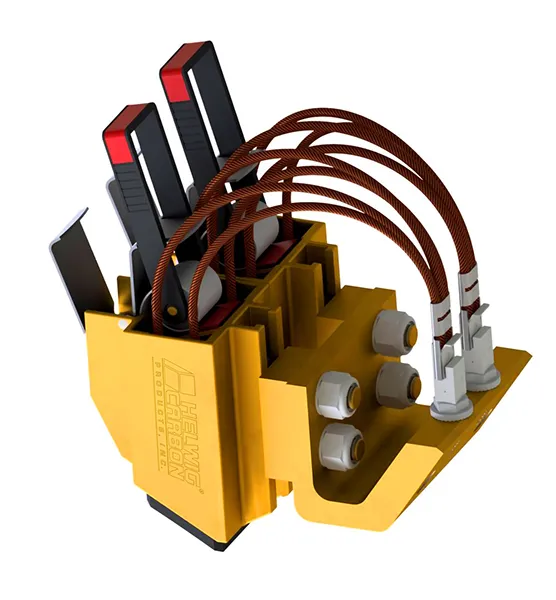

Carbon Brush Holders

Helwig is able to design & manufacture a wide array of carbon brush holder assemblies in a devoted production area in our Milwaukee, WI headquarters. Our holders are engineered with the customer’s brush and application in mind to provide the best holder solution for critical applications.

CUSTOM ENGINEERED FOR HIGH-PERFORMANCE

• Expertly designed for maximum reliability with world-class quality
• Enhanced designs allow for longer brushes increasing brush life and decreasing downtime
• Improved brass holder for durability in harsh environments
• Tightly maintained tolerances within .005″
• Thousands of quotable holders and components
• Holder material options: cast, machined, extruded or TeflonTM coated brass

THE HELWIG CARBON ADVANTAGE:

• Made in the USA (Milwaukee, WI)
• Precision fabrication in a devoted production area
• EDM, CNC and CAM Machining Centers
• Unmatched technical expertise and superior customer service
• Fast production, stock parts and quick delivery
• Ability to accommodate critical break-down situations
• ISO 9001 Certified

CONSTANT FORCE SPRINGS

• Our pioneering research in the 1980s set the industry standard for spring pressure, from 2 psi to 4-6psi on Industrial DC motors, which eventually led to increased spring pressure for almost all other applications
• Proper spring pressure ensures better brush contact with the commutator
• Increased spring force reduces electrical brush wear thus improves brush life and performance
• Spring life expectancy is 3-5 years on most applications – replacing our springs is easy and safer than traditional springs!

BUILT-IN WEAR INDICATOR

• Optional brush wear indicator is the industry’s most convenient way to monitor brush wear
• Red “danger strip” informs you the brush is worn out and should be replaced.
• Preventative maintenance’s dream accessory

HELWIG QUICK DISCONNECTS (HQDS)

• Impressively fast and easy way to change brushes
• No screws to remove, lose or replace!
• HQD’s lock together with a tight, positive locking action even under rough conditions
• Increase maintenance safety
