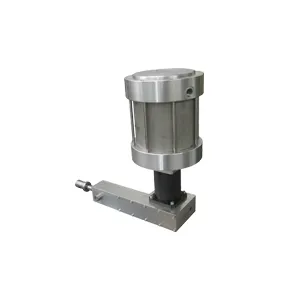

LGV Linear Guide Vane Actuator

This is a position servo assembly consisting of a digital electronic controller, rotary servo motor and rotary to linear gearbox. In application, the unit is usually mounted in trunnions and connected by a spherical jointed coupling to a mechanism which transfers the linear motion to rotate several stages of variable inlet stator blades on an axial compressor.

Stroke configurable up to 50 mm (at the time of ordering)
Force up to +/- 4500 N
Mounting options to suit most applications
Process feedback of position and force
Highly efficient gearhead optimises utilisation of electrical power
